Pool filtration system
A well-designed filtration system will help ensure clear water for your swimming pool.
The GREAT POOL swimming pool filter is designed to clean dirt and other small debris in the water, and can also help reduce the growth of bacteria and algae.

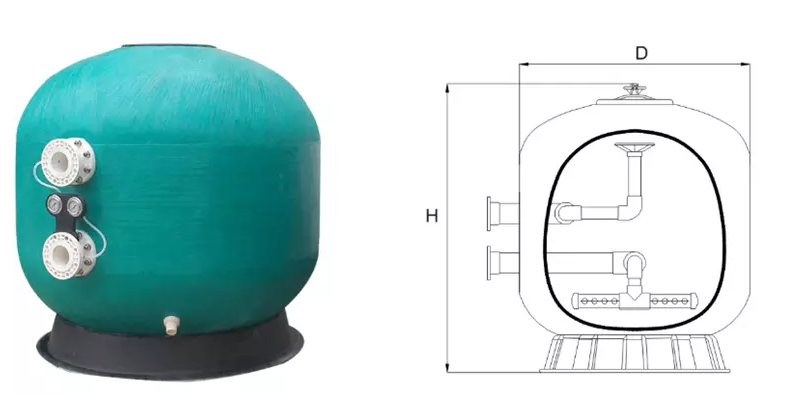

SCF larger sand filter can meet the needs of various water treatment works, including aquariums public swimming pools, spa center, large fountain and sewage treatment etc.
It is made of strong fiberglass and resin, cylinder with UV protection, by increasing distance from filter bed water distribution verbal. Thereby enhancing the effect of water filtration and avoiding the gravel fall into pipe when you backwash.
* Features
It is made from fiberglass and resin of high quality
The body and surface are with sun-proof treatment
The design of the top can exhaust air easily which introduced in the filtration process
Lens and manhole settings are available for you
Using 0.5-0.8mm Standard quartz sand
Working pressure: 250kpa
Test pressure: 400kpa
Maximum temperature: 45°C
|
Model |
Size (D) |
(mm) H |
(mm) |
(mm) |
flow (m3/h) |
inlet/outlet (inch) |
1-2mm Gravel Weight (kg) |
0.5-0.8m Sand Weight (kg) |
|
SCF1200 |
48"/Φ1200 | 1400 |
180*180 |
80 |
45 |
80 |
300 |
900 |
|
SCF1400 |
56"/Φ1400 | 1600 |
400*300 |
80 |
61 |
100 |
450 |
1350 |
|
SCF1600 |
64"/Φ1600 | 1750 |
400*300 |
80 |
80 |
100 |
700 |
2300 |
|
SCF1800 |
72"/Φ1800 | 1950 |
400*300 |
80 |
101 |
150 |
900 |
2900 |
|
SCF2000 |
80"/Φ2000 | 2140 |
400*300 |
80 |
125 |
150 |
1100 |
4000 |
|
SCF2350 |
94"/Φ2350 | 2350 |
450*350 |
80 |
166 |
200 |
1600 |
6000 |
|
SCF2500 |
100"/Φ2500 | 2450 |
450*350 |
80 |
200 |
200 |
1800 |
6700 |

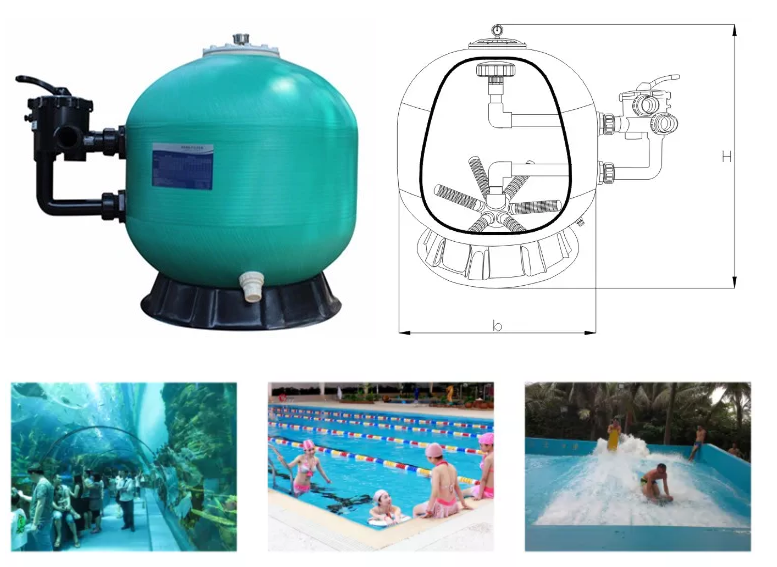

SCD sand filter made of fiberglass and resin of high quality has good chemical resistance and the performance of anti-UV. Its surface is not easy to crack and be broken by the impact because sand filter itself has a certain degree of flexibility. The water distribution designed uniquely can stabilize current uniformly and to improve drainage system. It is easy to install, repair and convenient for maintenance. After filtration, turbidity of water is less than 2 degrees. It brings cleanliness and sanitation for your swimming pool and it is preferred filtration equipment for swimming pool, spa pool, waters cape and Water Park.
Filter body covered with ultraviolet-proof layers of polyurethane
Ergonomic six-way valve in seating design
With excellent filtering capabilities
Anti-chemical corrosion
It equips with gauge
This Modell with the function of flushing, you can run it only by simple
Operation when in need, thus additional costs at maintenance could be saved
The equipment of sand valves at the bottom row provide convenience for removal or replacement of sand in filter
Using 0.5-0.8mm Standard quartz Sand
Packing: Cartoon/gallows
Working pressure: 250kpa
Test pressure: 400kpa
Maximum temperature: 45°C
|
Model |
Size (D) |
inlet/outlet (inch) |
flow (m7h) |
filtration (m2) |
Sand Weight (kg) |
height H (mm) |
|
SCD400 |
16"/Φ400 |
1.5" |
6 |
0 |
35 |
435 |
| SCD450 | 18"/Φ450 |
1.5" |
7 |
0 |
50 |
725 |
| SCD500 | 20"/Φ500 |
1.5" |
10 |
0 |
80 |
805 |
| SCD600 | 24"/Φ600 |
1.5" |
15 |
0 |
160 |
875 |
| SCD700 | 28"/Φ700 |
1.5" |
19 |
0 |
220 |
975 |
| SCD800 | 32"/Φ800 |
2" |
25 |
1 |
370 |
1145 |
| SCD900 | 36"/Φ900 |
2" |
30 |
1 |
447 |
1255 |
| SCD1000 | 407"/Φ1000 |
2" |
35 |
1 |
700 |
1350 |
| SCD1100 | 44"/Φ1100 |
2" |
44 |
1 |
960 |
1490 |
| SCD1200 | 48"/Φ1200 |
2" |
50 |
1 |
1200 |
1555 |
| SCD1400 | 56"/Φ1400 |
2" |
68 |
2 |
1700 |
1775 |
SCC sand filter made from fiberglass and resin of high quality has good chemical resistance and the performance of anti-UV. Its surface is not easy to cracked and be broken by the impact because sand filter itself has a certain degree of flexibility. The water distribution designed uniquely can stabilize current uniformly and to improve drainage system. It is easy to install, repair and convenient for maintenance. After filtration, turbidity of water is less than 2 degrees. It brings cleanliness and sanitation for your swimming pool and it is preferred filtration equipment for swimming pool, spa pool, waterscape and Water Park
Filter body is made of glass fiber and its surface is with ultraviolet-proof treatment
Ergonomic six-way valve in seating design
It equipped with stainless steel gauge
Built-in filter bottom pipe, easy to maintenance
The equipment of sand valves at the bottom row provide convenience for removal or replacement of sand in filter
Using 0.5-0.8mm Standard quartz sand
Packing: cartoon + gallows
Working pressure: 250kpa
Test pressure: 400kpa
Maximum temperature: 45°C
|
Model |
Size (D) |
inlet/outlet (inch) |
flow (m7h) |
filtration (m2) |
Sand Weight (kg) |
height H (mm) |
Packaae Size (mm) |
Weight (kg) |
|
SCC500 |
20"/Φ500 |
1.5" |
10 |
0 |
80 |
745 |
510*510*670 |
14 |
|
SCC600 |
24"/Φ600 |
1.5" |
15 |
0 |
160 |
805 |
630*630*670 |
19 |
|
SCC700 |
28"/Φ700 |
1.5" |
19 |
0 |
220 |
885 |
710*710*670 |
22.5 |
|
SCC800 |
32"/Φ800 |
2" |
25 |
1 |
370 |
1020 |
830*830*930 |
39.5 |
|
SCC900 |
36"/Φ900 |
2" |
30 |
1 |
447 |
1110 |
900*900*990 |
40 |
|
SCC1000 |
40"/Φ1000 |
2" |
35 |
1 |
700 |
1140 |
1030*1030*1200 |
57 |
|
SCC1200 |
48"/Φ1200 |
2" |
50 |
1 |
1200 |
1380 |
1230*1230*1380 |
68 |
Please Provide Necessary Information To Us As Follows:
| 1 | Provide us with the CAD drawing of your project if possible. |
| 2 | Swimming pool basin’s size, depth and other parameters. |
| 3 | Swimming pool type, outdoor or indoor pool,heated or not, located floor or inground. |
| 4 | Voltage standard for this project. |
| 5 | Operation System |
| 6 | Distance from the swimming pool to the machine room. |
| 7 | Specifications of pump, sand filter, lights and other fittings. |
| 8 | Need a disinfection system and heating system or not. |
Let us help design your swimming pool project!
